Cloud Playground Support

This article lists the supported resources for KodeKloud's cloud lab playgrounds

AZURE

The current Azure Sandbox supports the following resources:

  Virtual Machines

VM TYPE

CPU

RAM (GB)

Standard_B1s

1

1

Standard_B2s

2

4

Standard_DS1_v2s

1

3.5

Standard_D2s_v3

2

8









I

  Note: When creating the VM, please make sure to use either standard SSD or HDD (locally-redundant storage), with a maximum size of 128 GB.



Virtual Machine Scale Sets

VM TYPE

CPU

RAM (GB)

Standard_B1s

1

1

Standard_B2s

2

4

Standard_DS1_v2s

1

3.5

Standard_D2s_v3

2

8



Max Count: 3

Name: * The name of the scaleset must be app-scaleset

Scaling Policy Type: Manual



Disks

Type: Standard SSD and HDD only

Size: Maximum 128GB



Azure SQL

Restrictions:

1. max vcores = 2 ,

2. Data max size 50GB, .

3. Single zone and Backup - local redundancy only



Azure Web Apps



Restrictions: -

1. Allowed SKU = Dev/Test with Basic



Storage Accounts        Azure Logic Apps



      CosmosDB









       AKS


Restrictions:

  1. Allowed Node Size: Standard_B2s (only)
  2. Maximum Node Pool Size = 2 nodes (manual or auto-scale)

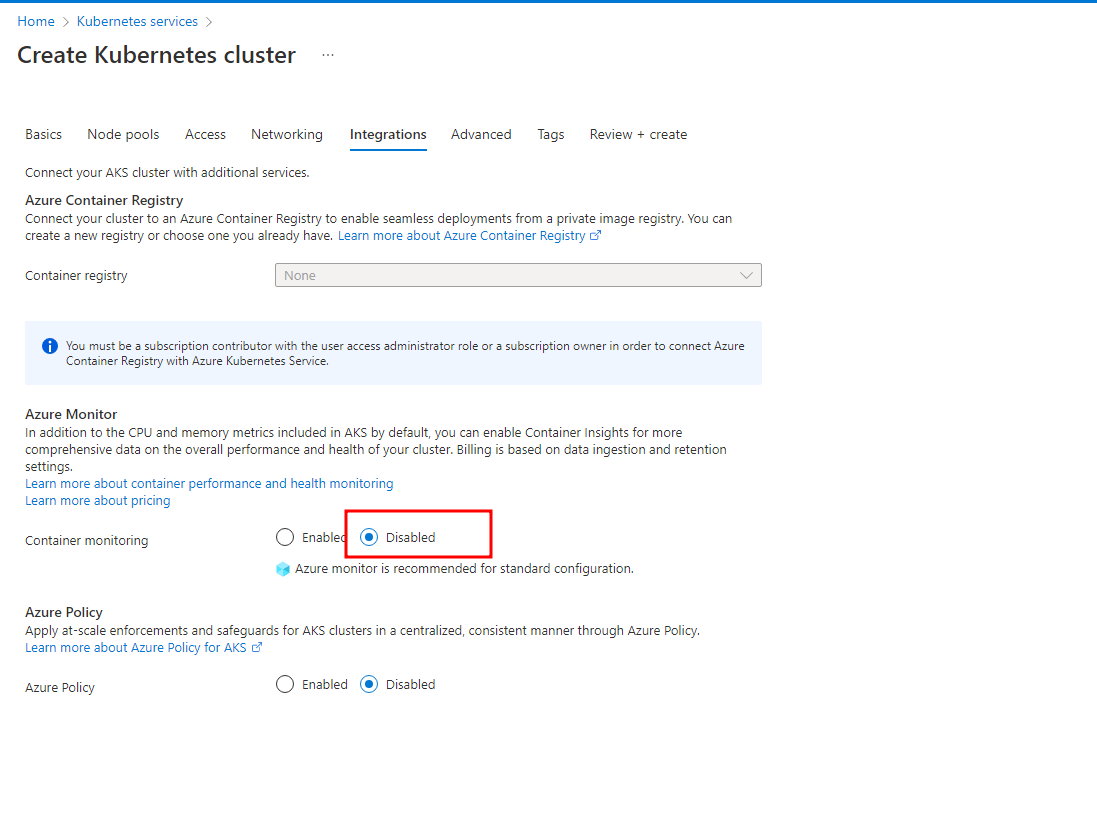

  3. Please make sure that "Container Insights" and "Alerting"  are Disabled
Note: - After the creation of an AKS cluster, you will see a message for the Dynamic RG which starts from "MC_ODL-azureV2-xxxx". In such cases, refresh the Azure portal. The message will disappear.

AWS


The current AWS Sandbox supports the following resources:


EC2 Instances VPC CodeDeploy Amazon S3
result (1)



result (3)

result (10)

result (2)




CodeStar

RDS

CloudTrail

CloudShell
result



result (5)



result (6)



Arch_AWS-CloudShell_64




CloudFormation

Elastic Container Registry

CodeCommit

KMS

result (16)




result (17)




result (18)



result (33)



CloudWatch CodePipeline Elastic Container Kubernetes Certificate Managers

result (24)



result (21)



result (22)



result (23)



Simple Email Service Simple Queue Service SNS CodeArtifact

result (27)




result (28)




result (32)



result (30)



Type: t1, t2 & t3 [nano, micro, small, medium] only.

We are adding support for more services. If you need a specific service, please let us know by sending an email to cloud-lab@kodekloud.com
